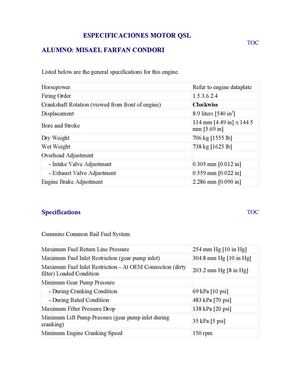

ESPECIFICACIONES MOTOR QSL
ALUMNO: MISAEL FARFAN CONDORI
TOC
Listed below are the general specifications for this engine.
Horsepower Refer to engine dataplate
Firing Order 1.5.3.6.2.4
Crankshaft Rotation (viewed from front of engine) Clockwise
Displacement 8.9 liters [540 in3
]
Bore and Stroke
114 mm [4.49 in] x 144.5
mm [5.69 in]
Dry Weight 706 kg [1555 lb]
Wet Weight 738 kg [1625 lb]
Overhead Adjustment
- Intake Valve Adjustment 0.305 mm [0.012 in]
- Exhaust Valve Adjustment 0.559 mm [0.022 in]
Engine Brake Adjustment 2.286 mm [0.090 in]
Specifications TOC
Cummins Common Rail Fuel System
Maximum Fuel Return Line Pressure 254 mm Hg [10 in Hg]
Maximum Fuel Inlet Restriction (gear pump inlet) 304.8 mm Hg [10 in Hg]
Maximum Fuel Inlet Restriction - At OEM Connection (dirty
filter) Loaded Condition
203.2 mm Hg [8 in Hg]
Minimum Gear Pump Pressure
- During Cranking Condition 69 kPa [10 psi]
- During Rated Condition 483 kPa [70 psi]
Maximum Filter Pressure Drop 138 kPa [20 psi]
Minimum Lift
