A.YITE TECHNOLOGY GROUP
http://www.ayite.net http://www.ayite1973.com Email: sales@ayite.net

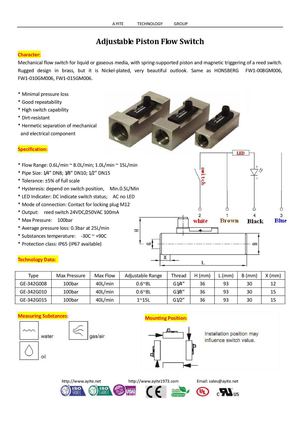

Adjustable Piston Flow Switch
Character:
Mechanical flow switch for liquid or gaseous media, with spring-supported piston and magnetic triggering of a reed switch.
Rugged design in brass, but it is Nickel-plated, very beautiful outlook. Same as HONSBERG FW1-008GM006,
FW1-010GM006, FW1-015GM006.
* Minimal pressure loss
* Good repeatability
* High switch capability
* Dirt-resistant
* Hermetic separation of mechanical
and electrical component
Specification:
* Flow Range: 0.6L/min ~ 8.0L/min; 1.0L/min ~ 15L/min
* Pipe Size: 1/4” DN8; 3/8” DN10; 1/2” DN15
* Tolerance: ±5% of full scale
* Hysteresis: depend on switch position, Min.0.5L/Min
* LED Indicater: DC indicate switch status; AC no LED
* Mode of connection: Contact for locking plug M12
* Output: reed switch 24VDC/250VAC 100mA
* Max Pressure: 100bar
* Average pressure loss: 0.3bar at 25L/min
* Substances temperature: -30C ~ +90C
* Protection cl
