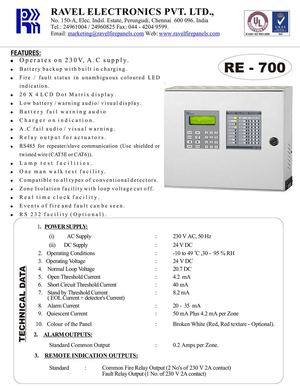

RAVEL ELECTRONICS PVT. LTD.,
No. 150-A, Elec. Indsl. Estate, Perungudi, Chennai 600 096. India
Tel.: 24961004 / 24960825 Fax: 044 - 4204 9599.
Email: Web:marketing@ravelfirepanels.com www.ravelfirepanels.com
FEATURES:
1. POWERSUPPLY:
(i) AC Supply : 230 V AC, 50 Hz
(ii) DC Supply : 24 V DC
o
2. Operating Conditions : -10 to 49 C ,30 - 95 % RH
3. Operating Voltage : 24 V DC
4. Normal Loop Voltage : 20.7 DC
5. Open Threshold Current : 4.2 mA
6. Short Circuit Threshold Current : 40 mA
7. Stand by Threshold Current : 8.2 mA
( EOL Current + detector's Current)
8. Alarm Current : 20 - 35 mA
9. Quiescent Current : 50 mA Plus 4.2 mA per Zone
10. Colour of the Panel : Broken White (Red, Red texture - Optional).
2. ALARMOUTPUTS:
Standard Common Output : 0.2 Amps per Zone.
3. REMOTE INDICATION OUTPUTS:
Standard : Common Fire Relay Output (2 No's of 230 V 2A contact)
Fault Relay Output (1 No. of 230 V 2A contact)
TECHNICALDATA
RE - 700
! O p e r a t e s o n 2 3 0 V, A . C s u p p l y.
! B a t t e
