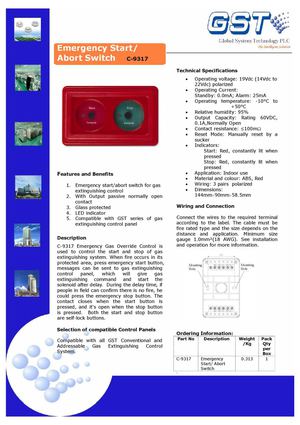

Emergency Start/
Abort Switch C-9317
Features and Benefits
1. Emergency start/abort switch for gas
extinguishing control
2. With Output passive normally open
contact
3. Glass protected
4. LED indicator
5. Compatible with GST series of gas
extinguishing...
More
Emergency Start/
Abort Switch C-9317
Features and Benefits
1. Emergency start/abort switch for gas
extinguishing control
2. With Output passive normally open
contact
3. Glass protected
4. LED indicator
5. Compatible with GST series of gas
extinguishing control panel
Description
C-9317 Emergency Gas Override Control is
used to control the start and stop of gas
extinguishing system. When fire occurs in its
protected area, press emergency start button,
messages can be sent to gas extinguishing
control panel, which will give gas
extinguishing command and start the
solenoid after delay. During the delay time, if
people in field can confirm there is no fire, he
could press the emergency stop button. The
contact closes when the start button is
pressed, and it's open when the stop button
is pressed. Both the start and stop button
are self-lock buttons.
Selection of compatible Control Panels
Compatible with all GST Conventional and
Addressable Gas Extinguishing Control
System.
Technical Specifi
