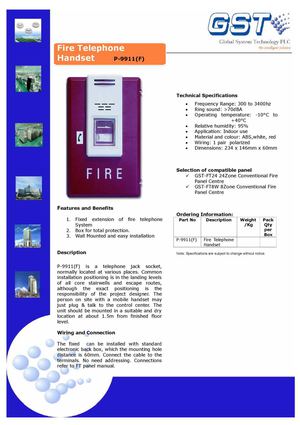

Fire Telephone
Handset P-9911(F)
Features and Benefits
1. Fixed extension of fire telephone
System
2. Box for total protection.
3. Wall Mounted and easy installation
Description
P-9911(F) is a telephone jack socket,
normally located at various places. Common
installation positioning is in the landing levels
of all core stairwells and escape routes,
although the exact positioning is the
responsibility of the project designer. The
person on site with a mobile handset may
just plug & talk to the control center. The
unit should be mounted in a suitable and dry
location at about 1.5m from finished floor
level.
Wiring and Connection
The fixed can be installed with standard
electronic back box, which the mounting hole
distance is 60mm. Connect the cable to the
terminals. No need addressing. Connections
refer to FT panel manual.
Technical Specifications
• Frequency Range: 300 to 3400hz
• Ring sound: >70dBA
• Operating temperature: -10°C to
+40°C
• Relative humidity: 95%
• Application: Indoor u
