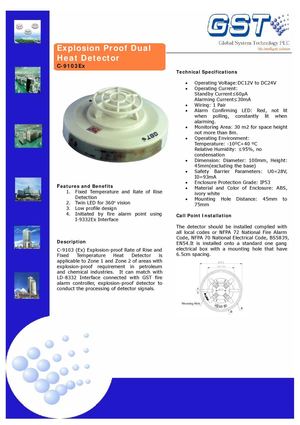

Explosion Proof Dual
Heat Detector
C-9103Ex
Features and Benefits
1. Fixed Temperature and Rate of Rise
Detection
2. Twin LED for 360º vision
3. Low profile design
4. Initiated by fire alarm point using
I-9332Ex Interface
Description
C-9103 (Ex) Explosion-proof Rate of Rise and
Fixed Temperature Heat Detector is
applicable to Zone 1 and Zone 2 of areas with
explosion-proof requirement in petroleum
and chemical industries. It can match with
LD-8332 Interface connected with GST fire
alarm controller, explosion-proof detector to
conduct the processing of detector signals.
Technical Specifications
• Operating Voltage:DC12V to DC24V
• Operating Current:
Standby Current≤60μA
Alarming Current≤30mA
• Wiring: 1 Pair
• Alarm Confirming LED: Red, not lit
when polling, constantly lit when
alarming.
• Monitoring Area: 30 m2 for space height
not more than 8m.
• Operating Environment:
Temperature: -10ºC+40 ºC
Relative Humidity: ≤95%, no
condensation
• Dimension: Diameter: 100mm, Height:
45mm(excludin
