C-9102

Conventional Optical Smoke Detector C-9102 Features and Benefits 1. Sensing chamber for exceptional dust proof ability 2. Built-in Remote Indicator Output 3. Twin LED for 360º vision 4. Low profile design Description With the technique of scattering, the... More

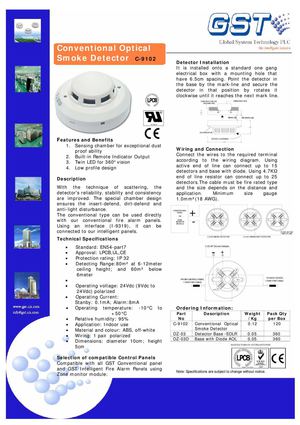

Conventional Optical Smoke Detector C-9102 Features and Benefits 1. Sensing chamber for exceptional dust proof ability 2. Built-in Remote Indicator Output 3. Twin LED for 360º vision 4. Low profile design Description With the technique of scattering, the detector's reliability, stability and consistency are improved. The special chamber design ensures the insert-defend, dirt-defend and anti-light disturbance. The conventional type can be used directly with our conventional fire alarm panels. Using an interface (I-9319), it can be connected to our intelligent panels. Technical Specifications • Standard: EN54-part7 • Approval: LPCB,UL,CE • Protection rating: IP 32 • Detecting Range:80m² at 6-12meter ceiling height; and 60m² below 6meter • • Operating voltage: 24Vdc (9Vdc to 24Vdc) polarized • Operating Current: Stanby: 0.1mA; Alarm:8mA • Operating temperature: -10°C to +50°C • Relative humidity: 95% • Application: Indoor use • Material and colour: ABS, off-white • Wiring: 1 pair polarize Less
