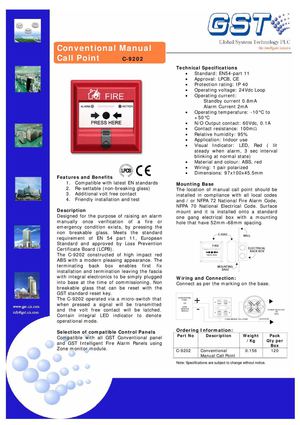

Conventional Manual
Call Point C-9202
Features and Benefits
1. Compatible with latest EN standards
2. Re-settable (non-breaking glass)
3. Additional volt free contact
4. Friendly installation and test
Description
Designed for the purpose of raising an...
More
Conventional Manual
Call Point C-9202
Features and Benefits
1. Compatible with latest EN standards
2. Re-settable (non-breaking glass)
3. Additional volt free contact
4. Friendly installation and test
Description
Designed for the purpose of raising an alarm
manually once verification of a fire or
emergency condition exists, by pressing the
non breakable glass. Meets the standard
requirement of EN 54 part 11, European
Standard and approved by Loss Prevention
Certificate Board (LCPB).
The C-9202 constructed of high impact red
ABS with a modern pleasing appearance. The
terminating back box enables first fix
installation and termination leaving the fascia
with integral electronics to be simply plugged
into base at the time of commissioning. Non
breakable glass that can be reset with the
GST standard reset key.
The C-9202 operated via a micro-switch that
when pressed a signal will be transmitted
and the volt free contact will be latched.
Contain integral LED indicator to denote
operational
Less
