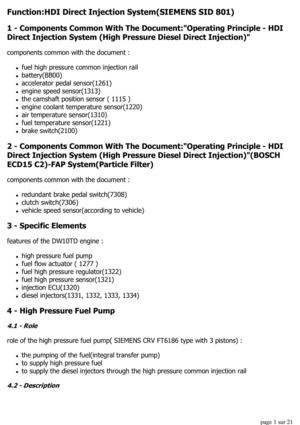

Function:HDI Direct Injection System(SIEMENS SID 801) 1 - Components Common With The Document:"Operating Principle - HDI Direct Injection System (High Pressure Diesel Direct Injection)" components common with the document : fuel high pressure common injection rail battery(BB00) accelerator pedal sensor(1261) engine speed sensor(1313) the camshaft position sensor ( 1115 ) engine coolant temperature sensor(1220) air temperature sensor(1310) fuel temperature sensor(1221) brake switch(2100) 2 - Components Common With The Document:"Operating Principle - HDI Direct Injection System (High Pressure Diesel Direct Injection)"(BOSCH ECD15 C2)-FAP System(Particle Filter) components common with the document : redundant brake pedal switch(7308) clutch switch(7306) vehicle speed sensor(according to vehicle) 3 - Specific Elements features of the DW10TD engine : high pressure fuel pump fuel flow actuator ( 1277 ) fuel high pressure regulator(1322) fuel high pressure sensor(1321) injection ECU(1320) die
