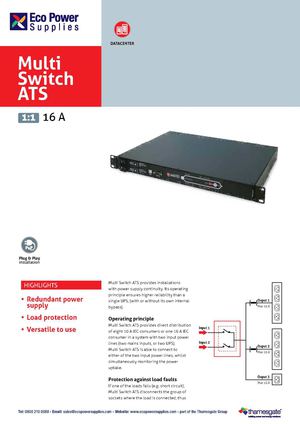

Multi
Switch
AtS
16 A1:1
Plug & Play
installation
Input 1
Input 2
Ouput 1
Max 10 A
Ouput 2
Max 10 A
Ouput 3
Max 10 A
DAtACeNteR
Tel: 0800 210 0088 - Email: sales@ecopowersupplies.com - Website: www.ecopowersupplies.com - part of the Thamesgate Group...
More
Multi
Switch
AtS
16 A1:1
Plug & Play
installation
Input 1
Input 2
Ouput 1
Max 10 A
Ouput 2
Max 10 A
Ouput 3
Max 10 A
DAtACeNteR
Tel: 0800 210 0088 - Email: sales@ecopowersupplies.com - Website: www.ecopowersupplies.com - part of the Thamesgate Group
HigHligHtS
• Redundant power
supply
• Load protection
• Versatile to use
Multi Switch ATS provides installations
with power supply continuity. Its operating
principle ensures higher reliability than a
single UPS, (with or without its own internal
bypass).
operating principle
Multi Switch ATS provides direct distribution
of eight 10 A IEC consumers or one 16 A IEC
consumer in a system with two input power
lines (two mains inputs, or two UPS).
Multi Switch ATS is able to connect to
either of the two input power lines, whilst
simultaneously monitoring the power
uptake.
Protection against load faults
If one of the loads fails (e.g. short circuit),
Multi Switch ATS disconnects the group of
sockets where the load is connected, thus
