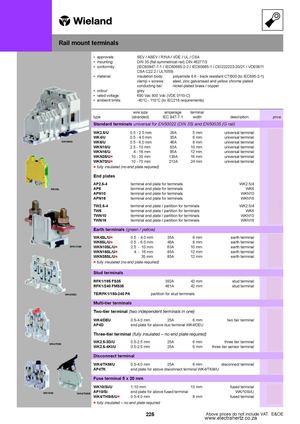

Rail mount terminals
WK4SL
RFK1/185
WK4/DEU
WK4/TKM
WK10/Si WK4/THSi5
WK/WKN
• approvals: SEV / ASEV / RINA / VDE / UL / CSA
• mounting: DIN 35 (flat symmetrical rail) DIN 46277/3
• conformity:...
More
Above prices do not include VAT.
E&OE225
Rail mount terminals
WK4SL
RFK1/185
WK4/DEU
WK4/TKM
WK10/Si WK4/THSi5
WK/WKN
• approvals: SEV / ASEV / RINA / VDE / UL / CSA
• mounting: DIN 35 (flat symmetrical rail) DIN 46277/3
• conformity: (IEC60947-7-1 / IEC60685-2-2 / IEC60685-1 / CEI222223-20/21 / VDE0611
CSA C22.
2 / UL1059)
• material: insulation body: polyamide 6.
6 - track resistant CTI600 (to IEC695-2-1)
clamp + screws: steel, zinc galvanised and yellow chrome plated
conducting bar: nickel-plated brass / copper
• colour: grey
• rated voltage: 690 Vac 800 Vdc (VDE 0110-C)
• ambient limits: -40°C - 110°C (to IEC216 requirements)
wire size amperage terminal
type (stranded) IEC 947-7-1 width description price
Standard terminals universal for EN50022 (DIN 35) and EN50035 (G rail)
WK2.
5/U 0.
5 - 2.
5 mm 26A 5 mm universal terminal 5.
60
WK4/U 0.
5 - 4.
0 mm 35A 6 mm universal terminal 5.
90
WK6/U 0.
5
