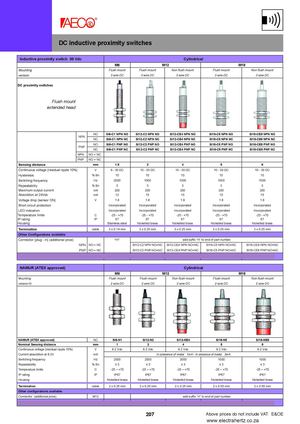

Inductive proximity switch 30 Vdc Cylindrical
M8 M12 M18
Mounting Flush mount Flush mount Non flush mount Flush mount Non flush mount
version 3 wire DC 3 wire DC 3 wire DC 3 wire DC 3 wire DC
DC proximity switches
Flush mount
extended head
NPN
NO...
More
Inductive proximity switch 30 Vdc Cylindrical
M8 M12 M18
Mounting Flush mount Flush mount Non flush mount Flush mount Non flush mount
version 3 wire DC 3 wire DC 3 wire DC 3 wire DC 3 wire DC
DC proximity switches
Flush mount
extended head
NPN
NO SI8-C1 NPN NO SI12-C2 NPN NO SI12-CE4 NPN NO SI18-C5 NPN NO SI18-CE8 NPN NO
NC SI8-C1 NPN NC SI12-C2 NPN NC SI12-CE4 NPN NC SI18-C5 NPN NC SI18-CE8 NPN NC
PNP
NO SI8-C1 PNP NO SI12-C2 PNP NO SI12-CE4 PNP NO SI18-C5 PNP NO SI18-CE8 PNP NO
NC SI8-C1 PNP NC SI12-C2 PNP NC SI12-CE4 PNP NC SI18-C5 PNP NC SI18-CE8 PNP NC
NPN NO + NC
PNP NO + NC
Sensing distance mm 1.
5 2 4 5 8
Continuous voltage (residual ripple 10%) V 6 - 30 DC 10 - 30 DC 10 - 30 DC 10 - 30 DC 10 - 30 DC
Hysteresis % Sn 10 10 10 10 10
Switching frequency Hz 2000 1000 1000 1000 1000
Repeatability % Sn 3 3 3 3 3
Maximum output current mA 200 200 200 200 200
Absorbtion at 24Vdc mA 12 15 15 15 15
Voltage drop (sensor ON) V 1.
8 1.
8 1.
8 1.
8 1.
8
Short cir
