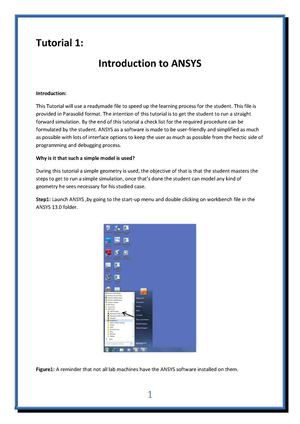

Tutorial 1:
Introduction to ANSYS
Introduction:
This Tutorial will use a readymade file to speed up the learning process for the student. This file is
provided in Parasolid format. The intention of this tutorial is to get the student to run a straight
forward simulation. By the end of this tutorial a check list for the required procedure can be
formulated by the student. ANSYS as a software is made to be user-friendly and simplified as much
as possible with lots of interface options to keep the user as much as possible from the hectic side of
programming and debugging process.
Why is it that such a simple model is used?
During this tutorial a simple geometry is used, the objective of that is that the student masters the
steps to get to run a simple simulation, once that’s done the student can model any kind of
geometry he sees necessary for his studied case.
Step1: Launch ANSYS ,by going to the start-up menu and double clicking on workbench file in the
ANSYS 13.0 folder.
Figure1: A r
