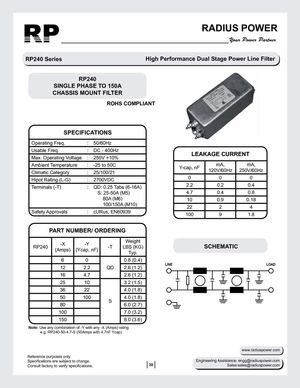

High Performance Dual Stage Power Line Filter
RP240
SINGLE PHASE TO 150A
CHASSIS MOUNT FILTER
ROHS COMPLIANT
RADIUS POWER
Your Power PartnerRP
RP240 Series
30
www.
radiuspower.
com
Engineering Assistance: engg@radiuspower.
com
Sales:sales@radiuspower.
com
Operating Freq.
: 50/60Hz
Usable Freq.
: DC - 400Hz
Max.
Operating Voltage : 250V +10%
Ambient Temperature : -25 to 50C
Climatic Category : 25/100/21
Hipot Rating (L-G) : 2700VDC
Terminals (-T) : QD: 0.
25 Tabs (6-16A)
S: 25-50A (M5)
80A (M6)
100/150A (M10)
Safety Approvals : cURus, EN60939
SPECIFICATIONS
Note: Use any combination of -Y with any -X (Amps) rating
e.
g.
RP240-50-4.
7-S (50Amps with 4.
7nF Ycap)
SCHEMATIC
Y-cap, nF
mA,
120V/60Hz
mA,
250V/60Hz
0 0 0
2.
2 0.
2 0.
4
4.
7 0.
4 0.
8
10 0.
9 0.
18
22 2 4
100 9 1.
8
LEAKAGE CURRENT
RP240
-X
(Amps)
-Y
(Ycap, nF)
-T
Weight
LBS (KG)
Typ.
6 0
QD
0.
8 (0.
4)
12 2.
2 2.
6 (1.
2)
16 4.
7 2.
6 (1.
2)
25 10
S
3.
2 (1.
5)
36 22 4.
0 (1.
8)
50 100 4.
0 (1.
8)
80 6.
0 (2.
7)
100 7.
0
