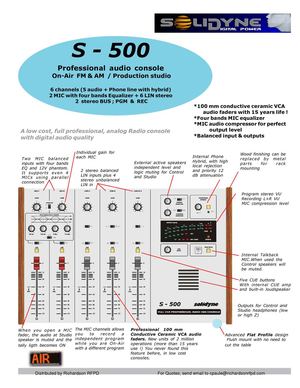

S - 500
Professional audio console
On-Air FM & AM / Production studio
6 channels (5 audio + Phone line with hybrid)
2 MIC with four bands Equalizer + 6 LIN stereo
2 stereo BUS ; PGM & REC
Two MIC balanced
inputs with four bands
EQ and 12V phantom.
It supports even 4
MICs using parallel
connection
Individual gain for
each MIC
2 stereo balanced
LIN inputs plus 4
stereo unbalanced
LIN in
Program stereo VU
Recording L+R VU
MIC compression level
Wood finishing can be
replaced by metal
parts for rack
mounting
Five CUE buttons
With internal CUE amp
and built-in loudspeaker
Internal Phone
Hybrid, with high
local rejection
and priority 12
dB attenuation
Internal Talkback
MIC.
When used the
Control speakers will
be muted.
When you open a MIC
fader, the audio at Studio
speaker is muted and the
tally ligth becomes ON
The MIC channels allows
you to record a
independent program
while you are On-Air
with a different program
External active speakers
independent level and
logic muting for Control
and
