TYPE:
ATECO Tank Technologies
Equipments - Services - Project EngineeringTANK TECHNOLOGIES
ATECO
www.
ateco.
com.
tr
Equipments-Services-Engineering
LS-100
LS-100

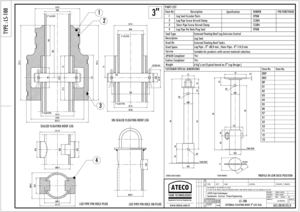

EXTERNAL FLOATING ROOF 3" LEG SEAL ASS-2010155/3
ASS-2010155
PART LIST
1
Description POLYURETHANERUBBERSpecification
2
3
Item No
Seal Type
Description
Used On
Used Space
Service
API650 Compliant
Codres Compliant
Weight
Leg Seal Circular Parts EPDM
Leg Pipe Screw Drived Clamp SS304
External Floating Roof Leg Emission Control
Leg Seal
External Floating Roof Tanks.
Leg Pipe : 3"- 88,9 mm , Sleev Pipe : 4"-114,3 mm
Suitable for products with correct material selection.
Yes
Yes
6 Kg s/set (Typical based on 3" Leg Design )
257.
5
155
257.
5
77.
575
152.
5
70105
180
3" LEG PIPE
4" SLEEV PIPE
75
62.
59
130
1
2
3
SEALED FLOATING ROOF LEG
UN-SEALED FLOATING ROOF LEG
3" LEG PIPE
4" SLEEV PIPE
PIN
COTTER PIN
Sleev Pipe Screw Drived Clamp SS304
4 Leg Pipe Pin Hole Plug Se
