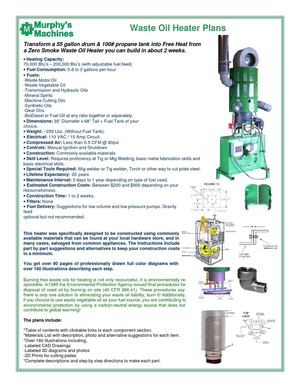

Waste Oil Heater Plans
Transform a 55 gallon drum & 100# propane tank into Free Heat from
a Zero Smoke Waste Oil Heater you can build in about 2 weeks.
• Heating Capacity:
70,000 Btu’s – 200,000 Btu’s (with adjustable fuel feed)
• Fuel Consumption: 0.
6 to 2 gallons per hour
• Fuels:
-Waste Motor Oil
-Waste Vegetable Oil
-Transmission and Hydraulic Oils
-Mineral Spirits
-Machine Cutting Oils
-Synthetic Oils
-Gear Oils.
-BioDiesel or Fuel Oil at any ratio together or separately.
• Dimensions: 30” Diameter x 68" Tall + Fuel Tank of your
choice.
• Weight: ~250 Lbs.
(Without Fuel Tank).
• Electrical: 110 VAC / 15 Amp Circuit.
• Compressed Air: Less than 0.
5 CFM @ 80psi
• Controls: Manual Ignition and Shutdown
• Construction: Commonly available materials
• Skill Level: Requires proficiency at Tig or Mig Welding, basic metal fabrication skills and
basic electrical skills.
• Special Tools Required: Mig welder or Tig welder, Torch or other way to cut plate steel.
• Lifetime Expectanc
