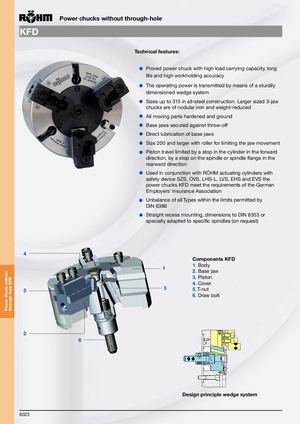

Power chucks without through-hole KFD Technical features: Proved power chuck with high load carrying capacity, long life and high workholding accuracy The operating power is transmitted by means of a sturdily dimensioned wedge system Sizes up to 315 in all-steel construction. Larger sized 3-jaw chucks are of nodular iron and weight-reduced All moving parts hardened and ground Base jaws secured against throw-off Direct lubrication of base jaws Size 200 and larger with roller for limiting the jaw movement Piston travel limited by a stop in the cylinder in the forward direction, by a stop on the spindle or spindle flange in the rearward direction Used in conjunction with RÖHM actuating cylinders with safety device SZS, OVS, LHS-L, LVS, EHS and EVS the power chucks KFD meet the requirements of the German Employers’ Insurance Association Unbalance of all Types within the limits permitted by DIN 6386 Straight recess mounting, dimensions to DIN 6353 or specially adapted to specific spindles (
