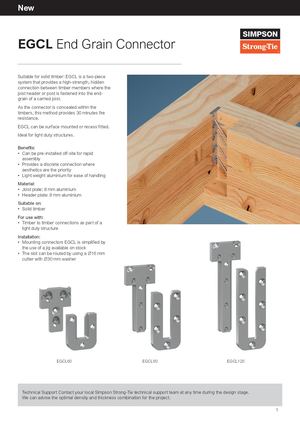

New EGCL End Grain Connector Suitable for solid timber: EGCL is a two-piece system that provides a high-strength, hidden connection between timber members where the joist header or post is fastened into the end- grain of a carried joist. As the connector is concealed within the timbers, this method provides 30 minutes fire resistance. EGCL can be surface mounted or recess fitted. Ideal for light duty structures. Benefits: • Can be pre-installed off-site for rapid assembly • Provides a discrete connection where aesthetics are the priority • Light weight aluminium for ease of handling Material: • Joist plate: 8 mm aluminium • Header plate: 8 mm aluminium Suitable on: • Solid timber For use with: • Timber to timber connections as part of a light duty structure Installation: • Mounting connectors EGCL is simplified by the use of a jig available on stock • The slot can be routed by using a Ø16 mm cutter with Ø30 mm washer EGCL60 EGCL90 EGCL120 Technical Support Contact your local Simpson St
