Quantum Composers, Inc.
212 Discovery Drive Bozeman, MT 59718
Toll Free: 800-510-6530 406-582-0227 FAX: 406-582-0237
http://www.
QuantumComposers.
com
Test & Measurement • Electro-Optics • Timing • Lasers • Micromachining

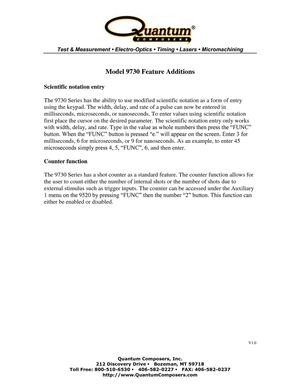

Model 9730 Feature Additions
Scientific notation entry
The 9730 Series has the ability to use modified scientific notation as a form of entry
using the keypad.
The width, delay, and rate of a pulse can now be entered in
milliseconds, microseconds, or nanoseconds.
To enter values using scientific notation
first place the cursor on the desired parameter.
The scientific notation entry only works
with width, delay, and rate.
Type in the value as whole numbers then press the “FUNC”
button.
When the “FUNC” button is pressed “e-” will appear on the screen.
Enter 3 for
milliseconds, 6 for microseconds, or 9 for nanoseconds.
As an example, to enter 45
microseconds simply press 4, 5, “FUNC”, 6, and then enter.
Counter function
The 9730 Series has a shot counter a
