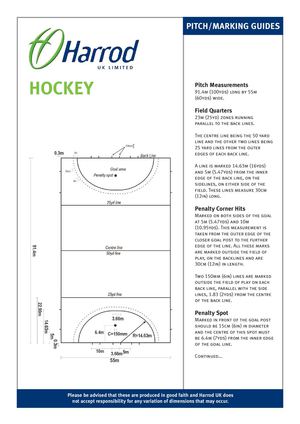

PITCH/MARKING GUIDES Pitch Measurements 91.4m (100yds) long by 55m (60yds) wide. Field Quarters 23m (25yd) zones running parallel to the back lines. The centre line being the 50 yard line and the other two lines being 25 yard lines from the outer edges of each back line. A line is marked 14.63m (16yds) and 5m (5.47yds) from the inner edge of the back line, on the sidelines, on either side of the field. These lines measure 30cm (12in) long. Penalty Corner Hits Marked on both sides of the goal at 5m (5.47yds) and 10m (10.95yds). This measurement is taken from the outer edge of the closer goal post to the further edge of the line. All these marks are marked outside the field of play, on the backlines and are 30cm (12in) in length. Two 150mm (6in) lines are marked outside the field of play on each back line, parallel with the side lines, 1.83 (2yds) from the centre of the back line. Penalty Spot Marked in front of the goal post should be 15cm (6in) in diameter and the centre of this spot m
