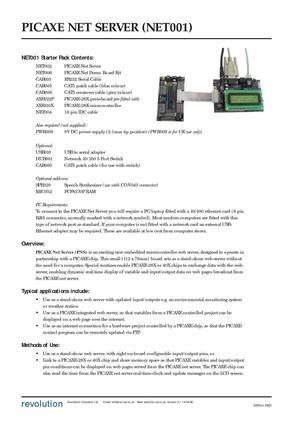

PICAXE NET SERVER (NET001)
revolution Revolution Education Ltd.
Email: info@rev-ed.
co.
uk Web: www.
rev-ed.
co.
uk Version 2.
1 14/04/06
NET001.
PMD
NET001 Starter Pack Contents:
NET002 PICAXE Net Server
NET006 PICAXE Net Demo Board Kit
CAB010 RS232 Serial Cable
CAB005 CAT5 patch cable (blue colour)
CAB006 CAT5 crossover cable (grey colour)
AXE022P PICAXE-28X protoboard pre-fitted with
AXE010X PICAXE-28X microcontroller
NET004 16 pin IDC cable
Also required (not supplied):
PWR009 9V DC power supply (2.
1mm tip positive) (PWR009 is for UK use only)
Optional:
USB010 USB to serial adapter
HUB001 Network 10/100 5 Port Switch
CAB005 CAT5 patch cable (for use with switch)
Optional add-ons:
SPE020 Speech Synthesizer (use with CON043 connector)
MIC052 PCF8570P RAM
PC Requirements:
To connect to the PICAXE Net Server you will require a PC/laptop fitted with a 10/100 ethernet card (8 pin
RJ45 connector, normally marked with a network symbol).
Most modern compu
