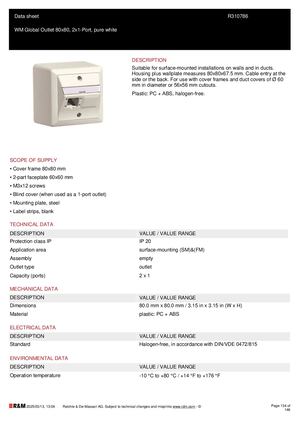

Data sheet R310786 WM Global Outlet 80x80, 2x1-Port, pure white DESCRIPTION Suitable for surface-mounted installations on walls and in ducts. Housing plus wallplate measures 80x80x67.5 mm. Cable entry at the side or the back. For use with cover frames and duct covers of Ø 60 mm in diameter or 56x56 mm cutouts. Plastic: PC + ABS, halogen-free. SCOPE OF SUPPLY • Cover frame 80x80 mm • 2-part faceplate 60x60 mm • M3x12 screws • Blind cover (when used as a 1-port outlet) • Mounting plate, steel • Label strips, blank TECHNICAL DATA 5 DESCRIPTION VALUE / VALUE RANGE Protection class IP IP 20 Application area surface-mounting (SM)&(FM) Assembly empty Outlet type outlet Capacity (ports) 2x1 MECHANICAL DATA 2 DESCRIPTION VALUE / VALUE RANGE Dimensions 80.0 mm x 80.0 mm / 3.15 in x 3.15 in (W x H) Material plastic: PC + ABS ELECTRICAL DATA 1 DESCRIPTION VALUE / VALUE RANGE Standard Halogen-free, in accordance with DIN/VDE 0472/815 ENVIRONMENTAL DATA DESCRIPTION VALUE / VALUE RANGE Operation temp
