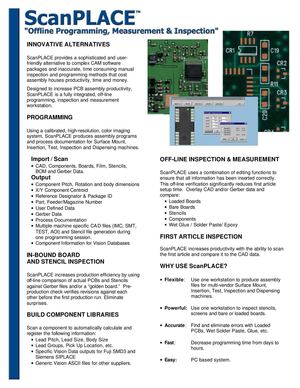

INNOVATIVE ALTERNATIVES ScanPLACE provides a sophisticated and userfriendly alternative to complex CAM software packages and inaccurate, time consuming manual inspection and programming methods that cost assembly houses productivity, time and money. Designed to increase PCB assembly productivity, ScanPLACE is a fully integrated, off-line programming, inspection and measurement workstation. PROGRAMMING Using a calibrated, high-resolution, color imaging system, ScanPLACE produces assembly programs and process documentation for Surface Mount, Insertion, Test, Inspection and Dispensing machines. Import / Scan • CAD, Components, Boards, Film, Stencils, BOM and Gerber Data. Output • Component Pitch, Rotation and body dimensions • X/Y Component Centroid • Reference Designator & Package ID • Part, Feeder/Magazine Number • User Defined Data • Gerber Data • Process Documentation • Multiple machine specific CAD files (IMC, SMT, TEST, AOI) and Stencil file generation during one programming session
