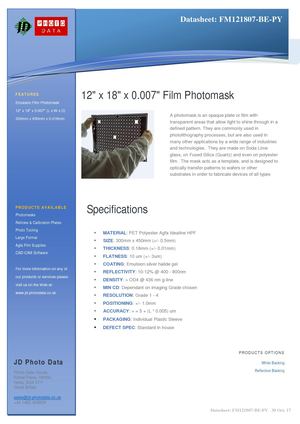

Datasheet: FM121807-BE-PY FEATURES Emulsion Film Photomask 12" x 18" x 0.007" Film Photomask 12" x 18" x 0.007" (L x W x D) A photomask is an opaque plate or film with 300mm x 450mm x 0.018mm transparent areas that allow light to shine through in a defined pattern. They are commonly used in photolithography processes, but are also used in many other applications by a wide range of industries and technologies. They are made on Soda Lime glass, on Fused Silica (Quartz) and even on polyester film. The mask acts as a template, and is designed to optically transfer patterns to wafers or other substrates in order to fabricate devices of all types PRODUCTS AVAILABLE Photomasks Specifications Reticles & Calibration Plates Photo Tooling MATERIAL: PET Polyester Agfa Idealine HPF Large Format SIZE: 300mm x 450mm (+/- 0.5mm) Agfa Film Supplies THICKNESS: 0.18mm (+/- 0.01mm) CAD-CAM Software FLATNESS: 10 um (+/- 3um) COATING: Emulsion silver halide gel For more information on any of REF
