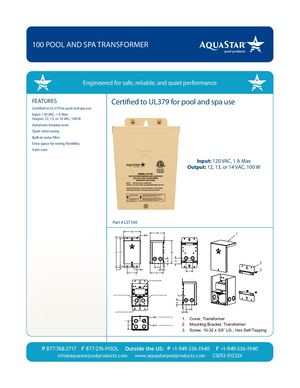

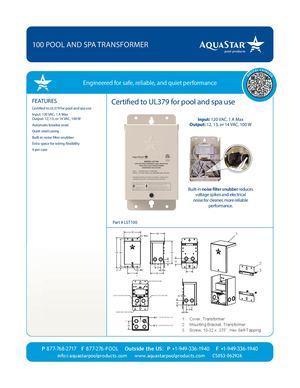

100 POOL AND SPA TRANSFORMER Engineered for safe, reliable, and quiet performance FEATURES Certified to UL379 for pool and spa use Certified to UL379 for pool and spa use Input: 120 VAC, 1 A Max Output: 12, 13, or 14 VAC, 100 W Automatic breaker reset Quiet...
More
100 POOL AND SPA TRANSFORMER Engineered for safe, reliable, and quiet performance FEATURES Certified to UL379 for pool and spa use Certified to UL379 for pool and spa use Input: 120 VAC, 1 A Max Output: 12, 13, or 14 VAC, 100 W Automatic breaker reset Quiet steel casing Built-in noise filter Extra space for wiring flexibility 4 per case Input: 120 VAC, 1 A Max Output: 12, 13, or 14 VAC, 100 W Part # LST100 3 5 16 " 1 11 4 32 " 9 32 " " 3 5 1 98" 88" 7 16 3 3 18" 14" 2 3 14" 3 8" 1 2" 1 7 8" 2" 3 3" 4 16 " 0" TRANSFORMER HIGH VOTAGE SIDE LOW VOTAGE SIDE 5 16 " 3 18" 3 14" EQUIPMENT GROUND 7 8" 7 0" 8 " = 1/2" NPT KNOCK OUT 1. Cover, Transformer 5 28" 1 1 8 " = 3/4" NPT KNOCK OUT 2. Mounting Bracket, Transformer 3. Screw, 10-32 x 3/8’’ LG., Hex Self-Tapping P 877-768-2717 F 877-276-POOL Outside the US: P +1-949-336-1940 F +1-949-336-1940 info@aquastarpoolproducts.com info@aquastarpoolproducts.com www.aquastarpoolproducts.com www.aquastarpoolproducts.com CS000-000000 CS053-012324
