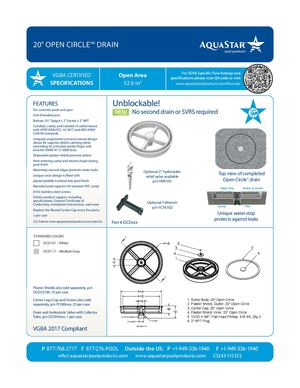

20" OPEN CIRCLE™ DRAIN For SOFA Specific Flow Ratings and VGBA CERTIFIED Open Area specifications please scan QR code or visit SPECIFICATIONS 52.6 in2 www.aquastarpoolproducts.com/flowcode FEATURES Unblockable! For concrete pools and spas One threaded port:...
More
20" OPEN CIRCLE™ DRAIN For SOFA Specific Flow Ratings and VGBA CERTIFIED Open Area specifications please scan QR code or visit SPECIFICATIONS 52.6 in2 www.aquastarpoolproducts.com/flowcode FEATURES Unblockable! For concrete pools and spas One threaded port: No second drain or SVRS required NEW Bottom 2½" Spigot x 2" Socket x 2" NPT Certified, Listed, and Labeled in conformance with APSP/ANSI/ICC-16 2017 and NSF/ANSI/ CAN 50 standards Uniquely engineered concave/convex design allows for superior debris catching while exceeding UL articulate probe finger and knuckle ASME A112 2008 tests Disposable plaster shield prevents debris from entering sump and retains shape during pool finish Waterstop around edges prevents water leaks Optional 2'' hydrostatic Unique circle design is filled with relief valve available Top view of completed plaster/pebble to blend into pool finish p/n HVK101 Open Circle™ drain Manufactured superior UV-resistant PVC sump Water Stop Pebble or Plaster #316 stainless s
