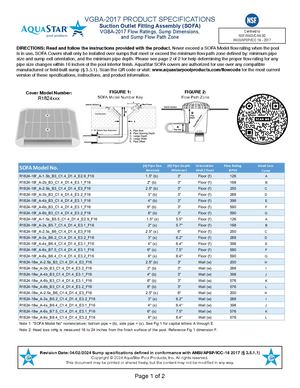

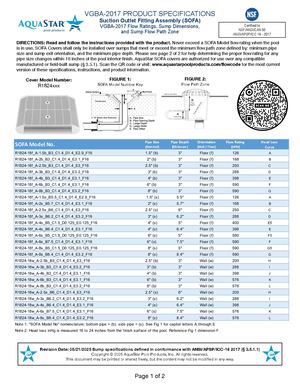

VGBA-2017 PRODUCT SPECIFICATIONS Suction Outlet Fitting Assembly (SOFA) VGBA-2017 Flow Ratings, Sump Dimensions, Certified to Sump Flow Path Zone, and Head Loss Curves NSF/ANSI/CAN 50 ANSI/APSP/ICC 16 - 2017 DIRECTIONS: Please follow the SOFA specific flow...
More
VGBA-2017 PRODUCT SPECIFICATIONS Suction Outlet Fitting Assembly (SOFA) VGBA-2017 Flow Ratings, Sump Dimensions, Certified to Sump Flow Path Zone, and Head Loss Curves NSF/ANSI/CAN 50 ANSI/APSP/ICC 16 - 2017 DIRECTIONS: Please follow the SOFA specific flow rates, sump specifications, and flow path zone information below.
The installation must conform to these minimum/maximum requirements including the SOFA dimension defined in Figure 1. The flow path zone is defined by dimensions A through E. The installed sump may be manufactured or field-built and it may be larger/deeper than Figure 1. Please write the Cover Model Number, orientation, and SOFA Model Flow Rating on the VGBA DRAIN COVER IDENTIFICATION INFORMATION label that comes with each AquaStar Pool Products, Inc. drain cover. FIGURE 1 – SOFA MODEL & FLOW PATH FOR MOST CURRENT INFORMATION
Cover Model Number: SCAN THE QR CODE OR VISIT R1824xxx WWW.AQUASTARPOOLPRODUCTS.COM/FLOWCODE
