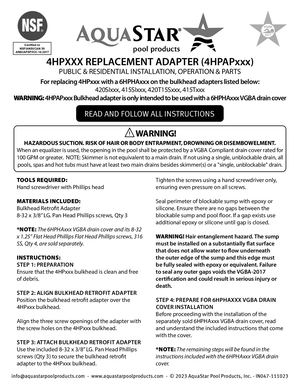

Certified to NSF/ANSI/CAN 50 ANSI/APSP/ICC-16 2017 4HPXXX REPLACEMENT ADAPTER (4HPAPxxx) PUBLIC & RESIDENTIAL INSTALLATION, OPERATION & PARTS For replacing 4HPxxx with a 6HPHAxxx on the bulkhead adapters listed below: 420SIxxx, 415SIxxx, 420T15Sxxx, 415Txxx WARNING: 4HPAPxxx Bulkhead adapter is only intended to be used with a 6HPHAxxx VGBA drain cover READ AND FOLLOW ALL INSTRUCTIONS ⚠WARNING! HAZARDOUS SUCTION. RISK OF HAIR OR BODY ENTRAPMENT, DROWNING OR DISEMBOWELMENT. When an equalizer is used, the opening in the pool shall be protected by a VGBA Compliant drain cover rated for 100 GPM or greater. NOTE: Skimmer is not equivalent to a main drain. If not using a single, unblockable drain, all pools, spas and hot tubs must have at least two main drains besides skimmer(s) or a "single, unblockable" drain. TOOLS REQUIRED: Tighten the screws using a hand screwdriver only, Hand screwdriver with Phillips head ensuring even pressure on all screws. MATERIALS INCLUDED: Seal perimeter of blocka
