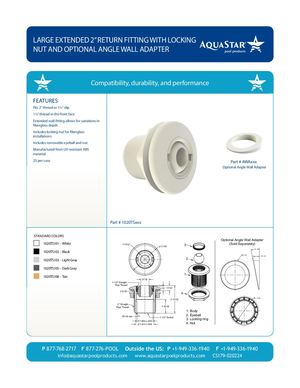

LARGE EXTENDED 2” RETURN FITTING WITH LOCKING NUT AND OPTIONAL ANGLE WALL ADAPTER Compatibility, durability, and performance FEATURES Fits 2” thread or 1½” slip 1½” thread in the front face Extended wall fitting allows for variations in fiberglass depth Includes locking nut for fiberglass installations Includes removable eyeball and nut Manufactured from UV-resistant ABS material 25 per case Part # AWAxxx Optional Angle Wall Adapter Part # 1020TSxxx STANDARD COLORS Optional Angle Wall Adapter 1020TS101 – White 1-7/8 3 (Sold Separately) 3-3/8 11° 1020TS102 – Black 3-3/8 ~ 23 / 32 1020TS103 – Light Gray 2 1020TS105 – Dark Gray 1 1020TS108 – Tan 7/8 1-1/2" Straight Pipe Thread 1/2 17/32 2-5/16 4 ~ 2-3/8 2-31/32 2" Straight Pipe Thread 1-15/32 1. Body R1/16 min. 2. Eyeball 1 1/2" Socket 1.894 ±.006 3. Locking ring 1.912 ±.006 4. Nut P 877-768-2717 F 877-276-POOL Outside the US: P +1-949-336-1940 F +1-949-336-1940 info@aquastarpoolproducts.com www.aquastarpoolproducts.com CS179-020224
