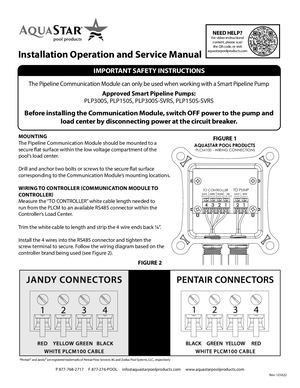

Installation Operation and Service Manual IMPORTANT SAFETY INSTRUCTIONS The Pipeline Communication Module can only be used when working with a Smart Pipeline Pump Approved Smart Pipeline Pumps: PLP300S, PLP150S, PLP300S-SVRS, PLP150S-SVRS Before installing the Communication Module, switch OFF power to the pump and load center by disconnecting power at the circuit breaker. MOUNTING The Pipeline Communication Module should be mounted to a secure flat surface within the low voltage compartment of the pool’s load center. Drill and anchor two bolts or screws to the secure flat surface corresponding to the Communication Module’s mounting locations. WIRING TO CONTROLLER (COMMUNICATION MODULE TO CONTROLLER) Measure the “TO CONTROLLER” white cable length needed to run from the PLCM to an available RS485 connector within the Controller Load Center. Trim the white cable to length and strip the 4 wire ends back ¼”. Install the 4 wires into the RS485 connector and tighten the screw terminal to secu
