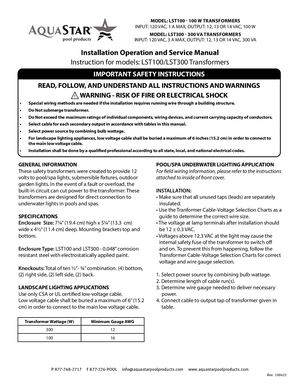

MODEL: LST100 - 100 W TRANSFORMERS INPUT: 120 VAC, 1 A MAX, OUTPUT: 12, 13 OR 14 VAC, 100 W MODEL: LST300 - 300 VA TRANSFORMERS INPUT: 120 VAC, 3 A MAX, OUTPUT: 12, 13 OR 14 VAC, 300 VA Installation Operation and Service Manual Instruction for models: LST100/LST300 Transformers IMPORTANT SAFETY INSTRUCTIONS READ, FOLLOW, AND UNDERSTAND ALL INSTRUCTIONS AND WARNINGS ⚠WARNING - RISK OF FIRE OR ELECTRICAL SHOCK • Special wiring methods are needed if the installation requires running wire through a building structure. • Do Not submerge transformer. • Do Not exceed the maximum ratings of individual components, wiring devices, and current carrying capacity of conductors. • Select cable for each secondary output in accordance with tables in this manual. • Select power source by combining bulb wattage. • For landscape lighting appliances, low voltage cable shall be buried a maximum of 6 inches (15.2 cm) in order to connect to the main low voltage cable. • Installation shall be done by a qualif
