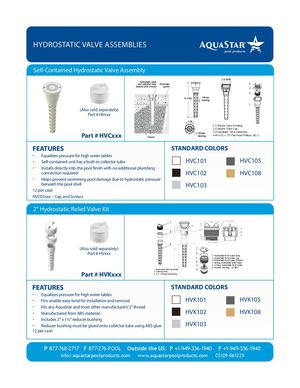

HYDROSTATIC VALVE ASSEMBLY AND KIT L C A TA I TA L IG Pool Wall Step O HYDROSTATS - Self-Contained Hydrostatic Valve Assembly D G 3-19/32 Hydrostatic valve 4 and collection tube Shotcrete/ Plaster shield (lowest point of pool) gunite 2 Interior Water stop...
More

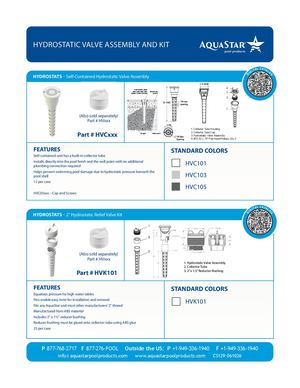

HYDROSTATIC VALVE ASSEMBLY AND KIT L C A TA I TA L IG Pool Wall Step O HYDROSTATS - Self-Contained Hydrostatic Valve Assembly D G 3-19/32 Hydrostatic valve 4 and collection tube Shotcrete/ Plaster shield (lowest point of pool) gunite 2 Interior Water stop pool finish 3 13-17/32 1/4 max Sump opening 1 (Also sold separately) Part # HVxxx 2-7/8 1. Collector Tube Housing Earth 2. Collector Tube Cap Part # HVCxxx 2" drain line Gravel Well point 1/8 Max 3. Hydrostatic Valve Assembly 4. #10-32 x .75" Flat Head Phillips, Qty 2 Opening FEATURES STANDARD COLORS Self-contained unit has a built-in collector tube STANDARD COLORS Installs directly into the pool finish and the well point with no additional plumbing connection required HVC101 Helps prevent swimming pool damage due to hydrostatic pressure beneath the pool shell HVC103 12 per case HVC105 HVC05xxx – Cap and Screws L C A TA I TA L IG Pool Wall Step O HYDROSTATS - 2" Hydrostatic Relief Valve Kit D G 1 5 2 16 " 2" - 11-1/2 MPT 2-5/16 2" NPT
