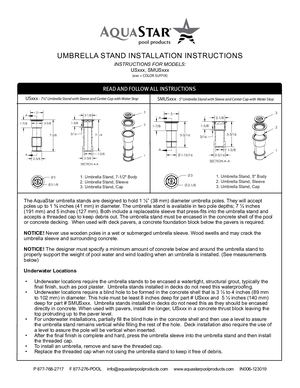

UMBRELLA STAND INSTALLATION INSTRUCTIONS INSTRUCTIONS FOR MODELS: USxxx, SMUSxxx (xxx = COLOR SUFFIX) READ AND FOLLOW ALL INSTRUCTIONS USxxx - 7½" Umbrella Stand with Sleeve and Center Cap with Water Stop SMUSxxx - 5" Umbrella Stand with Sleeve and Center Cap with Water Stop 3 3 3 A 2-1/8 3 A 2-1/8 1-7/8 2-3/8 1-5/8 2 1-7/8 1-5/8 2 7-3/8 3/16 7-1/4 5-5/16 5-3/16 3/16 A 1-5/8 1 A 1-5/8 1-15/16 2-5/16 1 2-3/8 2-3/8 SECTION A-A SECTION A-A 3 1. Umbrella Stand, 5" Body 3 1. Umbrella Stand, 7-1/2" Body 2. Umbrella Stand, Sleeve 2. Umbrella Stand, Sleeve 2-1/8 2-1/8 3. Umbrella Stand, Cap 3. Umbrella Stand, Cap The AquaStar umbrella stands are designed to hold 1 ½” (38 mm) diameter umbrella poles. They will accept poles up to 1 ⅝ inches (41 mm) in diameter. The umbrella stand is available in two pole depths; 7 ½ inches (191 mm) and 5 inches (127 mm). Both include a replaceable sleeve that press-fits into the umbrella stand and accepts a threaded cap to keep debris out. The umbrella stand mus
