90 DEGREE SUMP, DRY DECK® DECK DRAIN High-quality injection molded deck drain system FEATURES 90 degree ABS sump features horizontal locking tab and vertical locking snaps for a secure connection Unique concrete shield design has a slight taper to help...
More

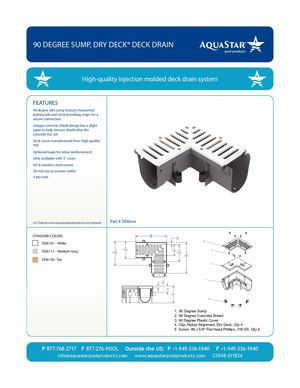

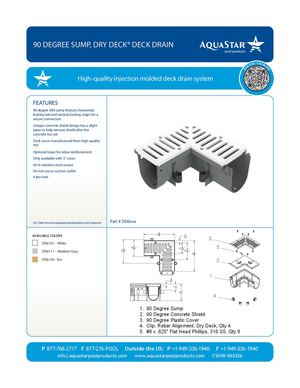

90 DEGREE SUMP, DRY DECK® DECK DRAIN High-quality injection molded deck drain system FEATURES 90 degree ABS sump features horizontal locking tab and vertical locking snaps for a secure connection Unique concrete shield design has a slight taper to help remove shield after the concrete has set Deck cover manufactured from high-quality PVC Optional loops for rebar reinforcement Only available with 3'' cover #316 stainless steel screws Do not use as suction outlet 4 per case U.S. Patents www.aquastarpoolproducts.com/patents Part # DD6xxx 3 STANDARD COLORS 68" 7 16 " 3 DD6101 – White 9 5 3 16 " 2 16 " 9 5 DD6117 – Medium Gray 15 4 16 " 3 16 " 3 68" DD6130 - Tan 2 1 3 8" 1 14" 1 32" 4 1. 90 Degree Sump 2. 90 Degree Concrete Shield 3. 90 Degree Plastic Cover 4. Clip, Rebar Alignment, Dry Deck, Qty 4 5. Screw, #8 x 5/8″ Flat Head Phillips, 316 SS, Qty 8 P 877-768-2717 F 877-276-POOL Outside the US: P +1-949-336-1940 F +1-949-336-1940 info@aquastarpoolproducts.com www.aquastarpoolproducts.com
